DTX-9000
Integrated Signal Conditioning Data Recorder
Operation:
Setup and operation of a DTX-9000 series Signal Conditioning
Data Recorder is designed to be intuitive and easy to use
without
compromising either performance or more advanced system configuration
requirements.
From Sensor Selection to Data Recording
Select the conditioning modules to match your transducer
type
Select from the range
of specialized DTX-5000/DTX-6000 conditioning
modules to match your sensor type, or choose

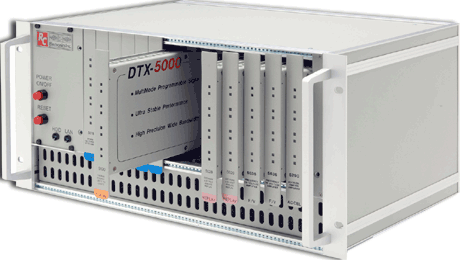

one of the multi-function modules. Install
the selected
modules into any available slot within the DTX-9000
chassis by simply sliding them in until seated
in the backplane interconnect.

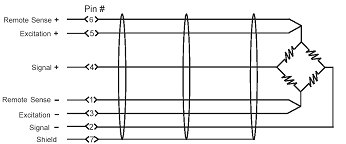

Wire your sensor to the appropriate mating connector
Use the mating connectors
provided with each module to directly interface
sensor signal leads to the chassis using simplied
wiring diagrams, or select one of the pre-wired
interfacing connector options (LEMO to BNC, LEMO
to pigtail, etc.)
Power on the chassis
Powering on the DTX-9000 chassis will bring
up an operational GUI showing all installed
module types, location, and current operational
status.
Click on any channel to open single channel setup GUI
Clicking on any channel
position on the main panel GUI will present
a
graphical representation of the sensor conditioner,
allowing direct control of all parameters.

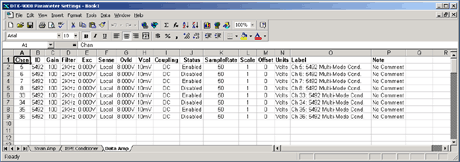

Or, download a preset test configuration from an Excel
spreadsheet
All configuration parameters
used to define a test setup can be stored
or saved
as an Excel spreadsheet.

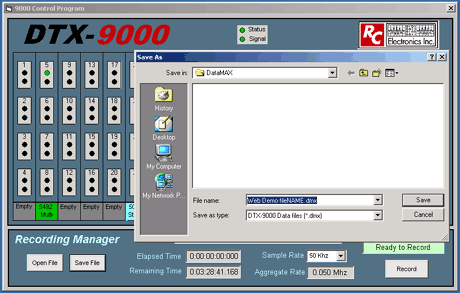

Save recording configuration to filename of your choice
Save the current operational status to create
a recording file which includes all sensor
conditioner
parameters embedded with recorded data, or
load a previously saved configuration.
