DTX-9017 Compact 5U Signal Conditioning Data Recorder |
 |
General Specifications

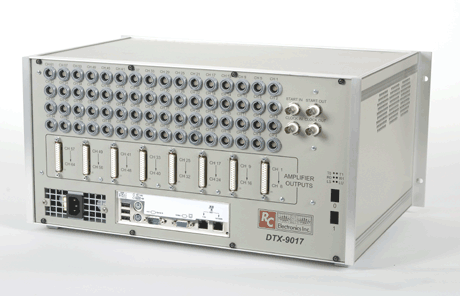

The DTX-9017
chassis uses a standard Intel computer board as
the system controller with a Widows operating
system. The surrounding enclosure was designed
to reduce system noise and isolate sensitive sensor
conditioning components from processor noise,
while providing all the advantages of a COTS system
within an instrumentation grade product offering.
|
|
General
Specifications
|
|
| Number
of module slots: |
16 |
| System
controller: |
Pentium
IV processor with 512 MB RAM |
| Peripheral
support: |
Video,
Keyboard, Mouse, USB 2.0 |
| Power
supply: |
400
Watt (120V/240V) |
| Internal
hard drive: |
80 GB
(160 GB optional) |
| Operating
system: |
Windows
Advanced Server |
| Network
connection: |
100
MB, 1Gbit Ethernet |
| Software:
|
Complete
user GUI for setup and control |
| Drivers:
|
Windows
drivers support user customization
|
|
|
Recording Capability
The DTX-9017 chassis
supports continuous recording of data up to an
aggregate rate of 6.4 Mega-Samples/second. Unique
to the 9000 series is the ability to independently
select digitization rates to match single channel
filter settings. This feature allows for recording
bandwidths from 400 Hz up to 800 kHz to be optimized
to sensor response characteristics.
|
|
Recording Specifications
|
|
| Sample
rate: |
1 kHz
to 2 MHz programmable |
| Independent
channel data rates: |
Yes |
| Aggregate
sustained recording rate: |
6.4
MSamples/Second |
| Alias
protection: |
-90
dB at Nyquist rate selection |
| Continuous
recording at maximum sustained rate: |
80 GB
data drive: 1.7 hours |
| Continuous
recording at maximum sustained rate: |
160
GB data drive: 3.4 hours |
| Remote
recording to redundant drives: |
Yes |
|
|
Mechanical Features

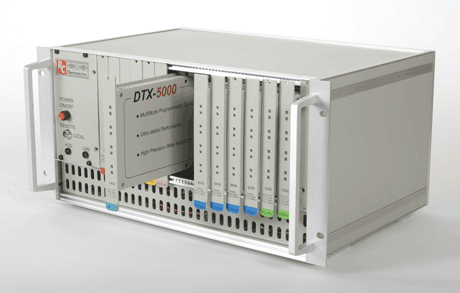

The DTX-9017 chassis is a custom designed
enclosure supporting up to 16 of our DTX-5000/DTX-6000
conditioning modules, plus an Intel Pentium
IV processor board, power supply and cooling
fans. The mechanical frame provides all the
structural support and interconnections for
a variety of operational configurations.
|
|
Mechanical Specifications
|
|
| Dimensions: |
8.75”
high x 17.6” wide x 12” deep |
| Weight:
|
16 lbs |
| Inputs:
|
64
isolated locking (7 pin LEMO gold plated) |
| Outputs: |
DB25
(8 channels differential per connector)
(optional DB25 to BNC adapter cable) |
| Synchronization: |
External
BNC trigger and clock |
| Cooling:
|
Filtered
power supply and module overhead plenum
|
| Module
support: |
16 slots
with direct mating to passive backplane |
| Front
panel: |
Lexan
cover, identifies slot status and signal
LEDs |
|
|
|
|
DTX-9417 Enhanced 6U Signal Conditioning Recorder
with Removable Drives |
|
General Specifications
| The DTX-9417 chassis
uses a standard Intel computer board as the
system
controller with a Widows operating system. The
surrounding enclosure was designed to reduce
system
noise and isolate sensitive sensor conditioning
components from processor noise, while providing
all the advantages of a COTS system within an
instrumentation grade product offering.
|
|
General
Specifications
|
|
| Number
of module slots: |
16 |
| System
controller: |
Pentium
IV processor with 512MB RAM |
| Peripheral
support: |
Video,
Keyboard, Mouse, USB 2.0 |
| Power
supply: |
Dual,
Redundant 400 Watt (120V/240V) |
| Hard
drive: |
Dual
Removable 300 GB (1000 GB optional) |
| Operating
system: |
Windows
Advanced Server |
| Network
connection: |
100
MB, 1Gbit Ethernet |
| Software:
|
Complete
user GUI for setup and control |
|
Drivers: |
Windows
drivers support user customization
|
|
|
Recording Capability
The DTX-9417 chassis supports continuous
recording of data up to an aggregate rate
of
16 Mega-Samples/second. Unique to the DTX-9000
series is the ability to independently select
digitization
rates to match single channel filter settings.
This feature allows for recording bandwidths
from 400 Hz up to 800 kHz to be optimized to
sensor response characteristics.
|
|
Recording Specifications
|
|
| Sample
rate: |
1 kHz
to 2 MHz programmable |
| Independent
channel data rates: |
Yes |
| Aggregate
sustained recording rate: |
16 MSamples/Second |
| Alias
protection: |
-90
dB at Nyquist rate selection |
| Continuous
recording at maximum sustained rate: |
320
GB data drive: 2.7 hours |
| Continuous
recording at maximum sustained rate: |
1000
GB data drive: 8.5 hours |
| Remote
recording to redundant drives: |
Yes |
|
|
Mechanical Features
The DTX-9417 chassis
is a custom designed enclosure supporting
up to 16
of our DTX-5000/DTX-6000 conditioning modules,
plus an Intel Pentium IV processor board,
power
supply and cooling fans. The mechanical frame
provides all the structural support and interconnections
for a variety of operational configurations.
|
|
Mechanical Specifications
|
|
| Dimensions: |
10.5”
high x 17.6” wide x 12” deep |
| Weight:
|
26 lbs |
| Inputs: |
64
isolated locking (7 pin LEMO gold plated) |
| Outputs: |
Eight
DB25 (8 channels differential per connector)
(optional DB25 to BNC adapter cable) |
| Auxiliary
I/O: |
Four
DB25 (user defined auxiliary functions)
|
| Synchronization: |
External
BNC trigger and clock |
| Cooling: |
Filtered
power supply and module overhead plenum
|
| Module
support: |
16 slots
with direct mating to passive backplane |
| Front
panel: |
Lexan
cover, identifies slot status and signal
LEDs |
|
|
